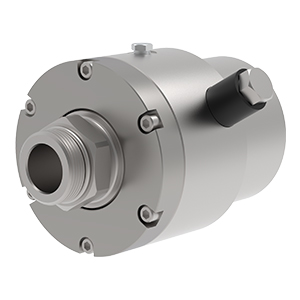

Custom Rotary Union Project: WV-0770701
Get a Quote
-
Industry: Factory AutomationMedia Type(s): Coolant, WaterEnvironment: CleanroomMaterial: Stainless SteelMax. Pressure(s): 60 PSI [4 BAR]Max. Speed: 450 RPM
-
Number of Passages: 1Passage Size(s): 1.06" [26.9 mm]Through Bore: NoneDiameter: 4.44" [112.8 mm]Length: 6.61" [167.9 mm]
Description
Custom rotary union designed for strip casting rare-earth magnets, including NdFeB materials. It reliably transfers coolant at 200–450 rpm within a vacuum chamber, supporting rapid cooling for fine, uniform microstructures and efficient downstream processing. Featuring advanced mechanical face seals and specialized bearings, the design provides dependable coolant transfer, long service life, and consistent performance in contamination-sensitive vacuum environments.
