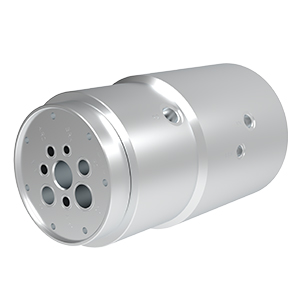

Custom Rotary Union Project: WF-0750007
Get a Quote
-
Industry: Defense, MarineMedia Type(s): Coolant, Gas, Oil, WaterEnvironment: OutdoorMaterial: Stainless SteelMax. Pressure(s): 3,000 PSI [207 BAR]Max. Speed: 3 RPM
-
Number of Passages: 7Passage Size(s): .375" [9.5 mm], .500" [12.7 mm], .750" [19.1 mm], 1.00" [25.4 mm], 1.25" [31.8 mm]Through Bore: 1.38" [35.1 mm]Diameter: 8.75" [222.3 mm]Length: 14.80" [375.9 mm]
Description
7-passage rotary union designed to prevent crosstalk between multiple media operating at different pressures and flow rates. Engineered for marine Azipod propulsion systems, this rotary union enables reliable fluid and media transfer from the ship to the motor pods while supporting unlimited 360-degree rotation.
