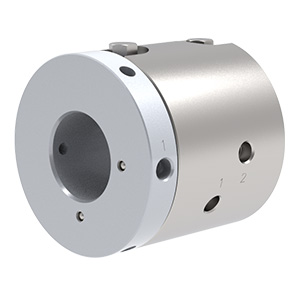

Custom Rotary Union Project: NB-1480202
Industry: Food & BeverageMedia Type(s): Chemical, GasEnvironment: Indoor, WashdownMaterial: Stainless SteelMax. Pressure(s): 120 PSI [8 BAR]Max. Speed: 28 RPM
Number of Passages: 2Passage Size(s): .250" [6.4 mm]Through Bore: 2.50" [63.5 mm]Diameter: 4.94" [125.5 mm]Length: 4.80" [121.9 mm]
2-passage rotary union supplies air to a blade that evacuates a large grain mixing tank. Features include weep ports between adjacent passages to ensure there is no crosstalk while capturing all potential leaks from entering the outside environment, integrated sealed ball bearings to ensure no external contamination is present and specialized seals compatible with chemicals used for washdown and clean-in-place (CIP) procedures.
