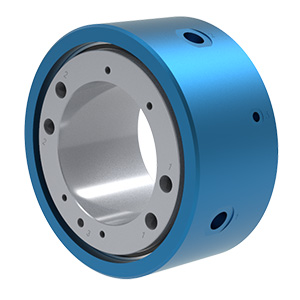

Custom Rotary Union Project: FM-0920003

Get a Quote
  • Industry: Machine Tool
    Media Type(s): Gas
    Environment: Indoor
    Material: Aluminum, Carbon / Alloy Steel
    Max. Pressure(s): 200 PSI [14 BAR]
    Max. Speed: 33 RPM
  • Number of Passages: 3
    Passage Size(s): .500" [12.7 mm], .125" [3.2 mm]
    Through Bore: 5.03" [127.8 mm]
    Diameter: 8.94" [227.1 mm]
    Length: 4.19" [106.4 mm]

Description

3-passage rotary union designed to supply air to a robotic carbon fiber lay-up machine. Features include a large through bore and a specialized shaft coating resulting in a hard, slippery, and corrosion-resistant surface for reduced maintenance and rebuild costs.
