Custom Rotary Union Project: BN-2020002
Get a Quote
-
Industry: Factory AutomationMedia Type(s): OtherEnvironment: IndoorMaterial: AluminumMax. Pressure(s): 100 PSI [7 BAR]Max. Speed: 120 RPM
-
Number of Passages: 2Passage Size(s): .75" [19.1 mm], .375" [9.5 mm]Through Bore: .56" [14.2 mm]Diameter: 3.00" [76.2 mm]Length: 3.81" [96.8 mm]
Description

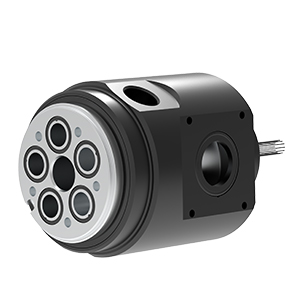

Custom 2-passage rotary union engineered for advanced End-of-Arm Tooling (EOAT) applications. Designed for high performance and seamless integration, the unit features a flow-optimized manifold, low-torque sealing technology, and lightweight construction to maximize efficiency and minimize system load. The design also incorporates a customer-supplied electrical slip ring interface, providing exceptional flexibility to accommodate dozens of slip ring configurations. This modular approach enables easy customization and future adaptability for a wide range of robotic automation and EOAT system requirements.
